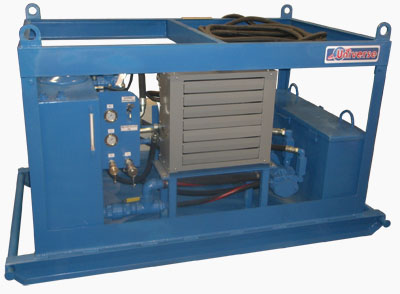

Hydraulic Power Units

Universe provides a full line of Power Units designed to meet the needs of hydraulic power for oil field equipment. Built rugged and with environmental conditions in mind, they use common industry recognized components making servicing and getting parts easier.

Features

  • Hose and basket rack built-in
  • Hydraulic oil cooler with fan
  • C/W relief valve and pressure gauge
  • 7000# tandem axle, electric brakes, spare tire & lights on trailer units
  • Optional oil heater & explosion proof starter / motor on electrical units
  • Optional oil heater & spark arrestor muffler & air shut off valve on diesel units

Brochures



Diesel Skid Unit pdf buttonpdf button
Diesel Trailer Unit pdf buttonpdf button
Electric Skid Unit pdf buttonpdf button

Options & Specifications

SPECIFICATIONS
Model
Motor
03 60 F
62 HP (46 kW) – Isuzu 4JG1-PK
Operating Temp. -10ºC to 43ºC (14ºF to 109ºF)
Hi Output
Low Output
1,000 psi (6,894 kPa)
65 GPM (246 LPM) @ 2,400 RPM
3,000 psi (20,684 kPa)
26 GPM (98 LPM) @ 2,400 RPM
DIMENSIONS
L x W X H
90” x 45” x 64”
(2.29 m x 1.15 m x 1.63 m)
Weight 2,550 lbs (1,155 kg) – Excluding Oil/fuel
pdf button Specification Sheet (Last updated January 23, 2015)











Model
Motor
03 60 FD
75 HP (56 kW) – Deutz F4L914 Air Diesel
Operating Temp.
-10ºC to 43ºC (14ºF to 109ºF)
Hi Output

Low Output
1,000 psi (6,894 kPa)
60 GPM (227 LPM) @ 2,300 RPM
3,500 psi (24,131 kPa)
24 GPM (91 LPM) @ 2,300 RPM
DIMENSIONS
L x W X H 90” x 45” x 64”
(2.29 m x 1.15 m x 1.63 m)
Weight 2,550 lbs (1,155 kg) – Excluding Oil/fuel
pdf button Specification Sheet (Last updated January 23, 2015)
SPECIFICATIONS
Model
Motor
03 60 D
62 HP (46 kW) – Isuzu 4JG1-PK
Operating Temp. -10ºC to 43ºC (14ºF to 109ºF)
Hi Output
Low Output
1,000 psi (6,894 kPa)
65 GPM (246 LPM) @ 2,400 RPM
3,000 psi (20,684 kPa)
26 GPM (98 LPM) @ 2,400 RPM
DIMENSIONS
L x W X H
134” x 76” x 66-1/2”
(3.40 m x 1.19 m x 2.0 m)
Weight 2,770 lbs (1,255 kg) – Excluding Oil/fuel
pdf button Specification Sheet (Last updated January 23, 2015)




Model
Motor
03 60 DD
75 HP (56 kW) – Deutz F4L914 Air Diesel
Operating Temp.
-10ºC to 43ºC (14ºF to 109ºF)
Hi Output

Low Output
1,000 psi (6,894 kPa)
60 GPM (227 LPM) @ 2,300 RPM
3,500 psi (24,131 kPa)
24 GPM (91 LPM) @ 2,300 RPM
DIMENSIONS
L x W X H 134” x 76” x 66-1/2”
(3.40 m x 1.19 m x 2.0 m)
Weight 2,770 lbs (1,255 kg) – Excluding Oil/fuel
pdf button Specification Sheet (Last updated January 23, 2015)
SPECIFICATIONS
Model
Motor
03 50 E
50 HP (37 kW) – 3 Phase
380 Volt – 50 Hz 1- 500 RPM
Operating Temp. -10ºC to 43ºC (14ºF to 109ºF)
Hi Output
Low Output
1,000 psi (6,894 kPa)
52 GPM (197 LPM) @ 1,500 RPM
3,500 psi (24,131 kPa)
15 GPM (56 LPM) @ 1,500 RPM
DIMENSIONS
L x W X H
90” x 45” x 64”
(2.29 m x 1.15 m x 1.63 m)
Weight 2,600 lbs (1,180 kg) – Excluding Oil
pdf button Specification Sheet (Last updated January 23, 2015)




Model
Motor
03 60 E
60 HP (45 kW) – 3 Phase
575 Volt – 60 HZ – 1800 RPM
Operating Temp.
-10ºC to 43ºC (14ºF to 109ºF)
Hi Output

Low Output
1,000 psi (6,894 kPa)
65 GPM (246 LPM) @ 1,800 RPM
3,500 psi (24,131 kPa)
19 GPM (72 LPM) @ 1,800 RPM
DIMENSIONS
L x W X H 90” x 45” x 64”
(2.29 m x 1.15 m x 1.63 m)
Weight 2,600 lbs (1,180 kg) – Excluding Oil
pdf button Specification Sheet (Last updated January 23, 2015)
Please contact us today to discuss your requirements.
